Home > Product > Vertical system > 3-Axis vertical lift
3 Axis platform lift3 Axis platform lift3 Axis platform lift3 Axis platform lift3 Axis platform lift3 Axis platform lift3 Axis platform lift3 Axis platform lift3 Axis platform lift

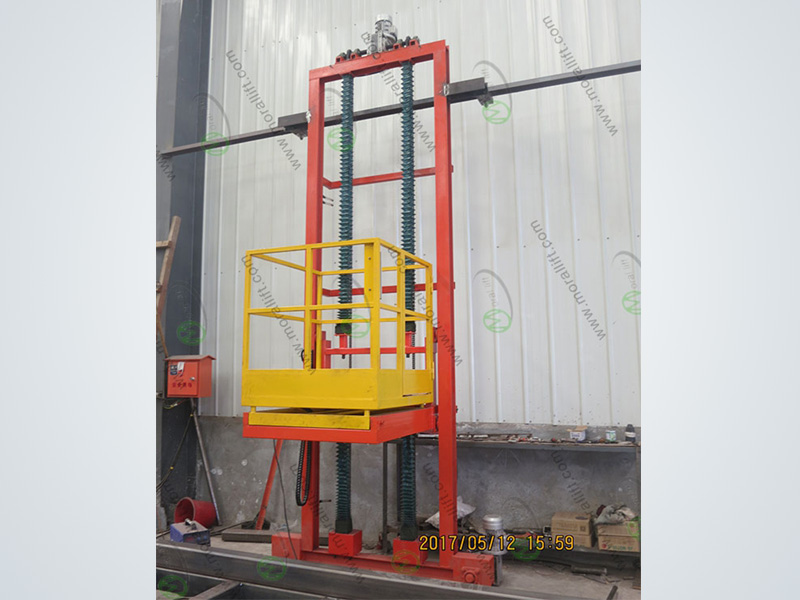

3 Axis platform lift

  • Product name   :

    3 Axis platform lift

  • Model  :

    SJD

  • Drive model   :

    Chain

  • Loading capacity   :

    300kg--500kg

  • Lifting height   :

    1--10m

  • Platform size   :

    900*700mm

  • Other   :

    Special customized

WhatsApp: +8618769790513
E-mail: info@morallift.com

Professional automotive 3-Axis platform lifts,vertical man lifts and electric lift platforms. The 3D lift is ideal for auxiliary equipment for the spray industry. Can work in three dimensions at the same time, effectively reduce the labor intensity, improve work efficiency.

  • Horizontal Movement (X-axis): Travel Rate: 8 meters per minute Travel Distance: 20000mm Drive Mechanism: 0.75kw anti-explosion motor(explosion-proof grade:EXDIIBT4), reduction gear Horizontal Control: button control in the front of the guard.

  • Extended Movement (Y-axis): Travel Rate: 3 meters per minute Extended Distance: 500mm Drive Mechanism: 0.55kw anti-explosion motor (explosion-proof grade:EXDIIBT4), screw, sprocket, chain, shield Extended Control: button control in the front of the guard

  • Vertical Movement (Z-axis): Travel Rate: 5 meters per minute Working Area: 550mm~3000mm from floor Drive Mechanism: 1.5kw anti-explosion motor (explosion-proof grade:EXDIIBT4), reduction gear, sprocket, chain, shaft, bearing seat, scroll wheel shield Vertical Control: button control in the front of the guard

Vertical system small.jpg    LIFT small.jpg
